Diver Splash-proof Digital Video Recorder is used for underwater surveys in sea or fresh water, and for underwater technical works control. Underwater unit consists of video camera, lamp and umbilical, and performs video signal transmittion to on-board unit, which records video in MPEG-4 format.
Diver Splash-proof Digital Video Recorder is based on DVSDV software, has easy control, both recording and playback modes using AVI files (audio, video) in one of the following formats: DV or MPEG-2 or /MPEG-4.
Control unit, LCD monitor 15", digital audio-video recording system are constructed in waterproof and shockproof plastic rack. Power and umbilical connectors are placed on outer front side of the case.

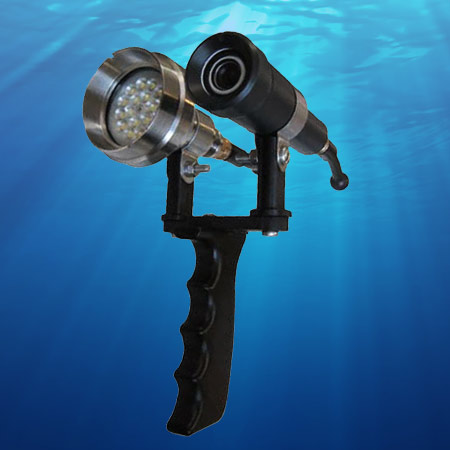

The camera and the lamp are fixed on special handle (also they could be fixed on diver's helmet).
Underwater unit (camera, light, umbilical) transmits the video signal to on-board unit, which records the video signal in MPEG-4 format.
All cables are equipped with special waterproof caps.
Features
- Easy record control (2 buttons)
- Easy playback control (3 buttons)
- Video recording to HDD
- Recording duration up to 150 hours in MPEG-4 format
- Files recording to USB DVD-drive and external HDD (including USB-flash)
- Date / Time overlay
- Text overlay in Russian language
- Smooth adjustment of light brightness
- Shockproof
- Vibration resistance
- Light type option when ordering (LED or halogen)
- Camera and lights mount possibility on Kirby Morgan helmets (optional)
Accessories
1. Set of recorded data transferring to external storage (USB-hub, mouse, keyboard, external hard drive)
2. External USB-speakers
3. External DVD-drive
Available options
- Ultrasonic thickness gauge Cygnus connection
- GPS receiver connection
- Depth sensor connection
- USBL TrackLink connection
- Sonar Micron connection
- Sound-imaging device BlueView connection
Control Unit
|
Dimensions |
540x420x220 mm |
|
Weight |
up to 15kg |
| Power Supply | 5А 220V АС |
|
|
16А 12V DC |
|
Operating Temperature |
-10°С +40°С |
|
Storage Temperature |
-20°С +65°С |
Monitor
|
Type |
LCD 17” |
|
Resolution |
1024х768 |
|
Format |
SVGA |
Digital Video Recorder
|
Digital Recording Format |
MPEG-4 |
|
Frame resolution |
720х576 |
|
Frame rate |
25 fps |
|
Audio |
44 kHz |
|
Record duration |
up to 150 hours in MPEG-4 |
|
File format |
AVI files named as: YYYYMMDD_HHMMSS.avi |
Underwater Camera PVK-100
|
Signal |
PAL |
|
Resolution |
550 TVL |
|
Sensitivity |
0.1 lux |
|
Power Supply |
12 V DC, stabilized voltage |
|
Weight |
300 g |
|
Case material |
plastic |
|
Diameter of fastener |
35 mm |
|
Length |
143 mm |
| Length with underwater connector | 179 mm |
|
Max operating depth |
up to 100 m |
Lighting SVDS2-100
|
Type |
LED |
|
Power Supply |
24 V DС |
|
Power |
2.5 W |
|
Weight |
500 g |
|
Case material |
Plastic |
|
Diameter of fastener |
36 mm |
|
Length |
117 mm |
|
Max operating depth |
up to 100 m |
Lighting GS-100
|
Type |
Halogen |
|
Power Supply |
12 V DС |
|
Power |
50 W |
|
Weight |
500 g |
|
Case material |
stainless steel |
|
Diameter of fastener |
36 mm |
|
Length |
117 mm |
|
Max operating depth |
up to 100 m |
Attention! When you order the unit you can choose the light type (SVDS2-100 or GS-100). It is independent of the price!
